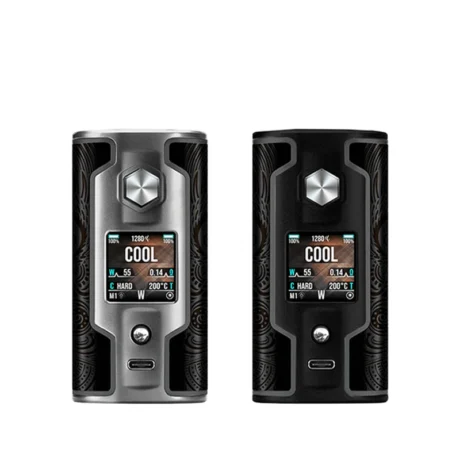

SXmini G Class V2 Box Mod

SXmini G Class V2 Box Mod

The SXmini G Class V2 Box Mod is an advanced dual-18650 vape mod built for experienced users who want precise control over power, temperature and coil performance. Powered by the YiHi SX750 chipset, it delivers an adjustable 10-200W output with fourth-generation Temperature Control, Smart Boost intelligent preheating and custom power curves. A 1.3-inch TFT IPS colour screen and joystick interface provide access to its settings, while 2.4GHz Wi-Fi supports compatible firmware and interface updates through SX-Panel. The G Class V2 supports tanks up to 30mm in diameter and is supplied without batteries or a tank.

YiHi SX750 Performance

The YiHi SX750 chipset provides variable wattage from 10W to 200W, making the G Class V2 suitable for a wide range of compatible sub-ohm tanks, RTAs and RDAs.

Five memory profiles allow settings to be saved for different atomisers or coil builds. Custom power curves and selectable power-delivery settings also let experienced users adjust how quickly the coil heats and how the output develops throughout each draw.

Smart Boost evaluates the connected coil and applies additional initial power when required, helping larger coils reach the selected operating level more quickly.

The chipset has a protective coating, although the complete mod should not be treated as waterproof.

Dual 18650 Battery Configuration

The SXmini G Class V2 is powered by two removable 18650 batteries, which are sold separately.

Using two cells provides greater output headroom and potential runtime than a single-battery mod. Actual battery life will depend on battery capacity, selected wattage, coil resistance and frequency of use.

Always use a matched pair of authentic 18650 batteries of the same brand, model, age and charge history. Never install batteries with damaged wraps, dents or corrosion.

Pair the device with the Vap Procell 18650 3700mAh Battery Pair.

Temperature Control and Smart Boost

The G Class V2 features fourth-generation Temperature Control with stated resistance-reading precision of 0.0001Ω.

Temperature Control supports compatible coil materials including SS316L stainless steel, Ni200 nickel, titanium and custom TCR settings. When correctly configured, it regulates power according to changes in coil resistance for more consistent temperature management.

The coil resistance should be read and locked while the atomiser is at room temperature.

Wi-Fi, Display and Controls

The SXmini G Class V2 supports 2.4GHz Wi-Fi for compatible updates and customisation through SX-Panel.

Depending on the available firmware and software, SX-Panel can be used to:

• Download firmware updates
• Install supported interface themes
• Change wallpaper backgrounds
• Rename memory profiles
• Add compatible language options

Wi-Fi is optional and is not required for normal operation.

A 1.3-inch TFT IPS colour screen displays the selected wattage or temperature, coil resistance, voltage, battery levels, active mode and puff information. Settings are controlled using the firing button and five-way joystick.

Tank Compatibility and Construction

The G Class V2 uses a spring-loaded 510 connection and supports tanks and atomisers up to 30mm in diameter without overhang.

Browse our range of compatible vape tanks to complete your setup.

The body combines zinc and aluminium components and measures approximately 94 × 47.7 × 34.3mm. The device weighs approximately 150g without batteries or a tank.

Available Colours

Colour	Construction

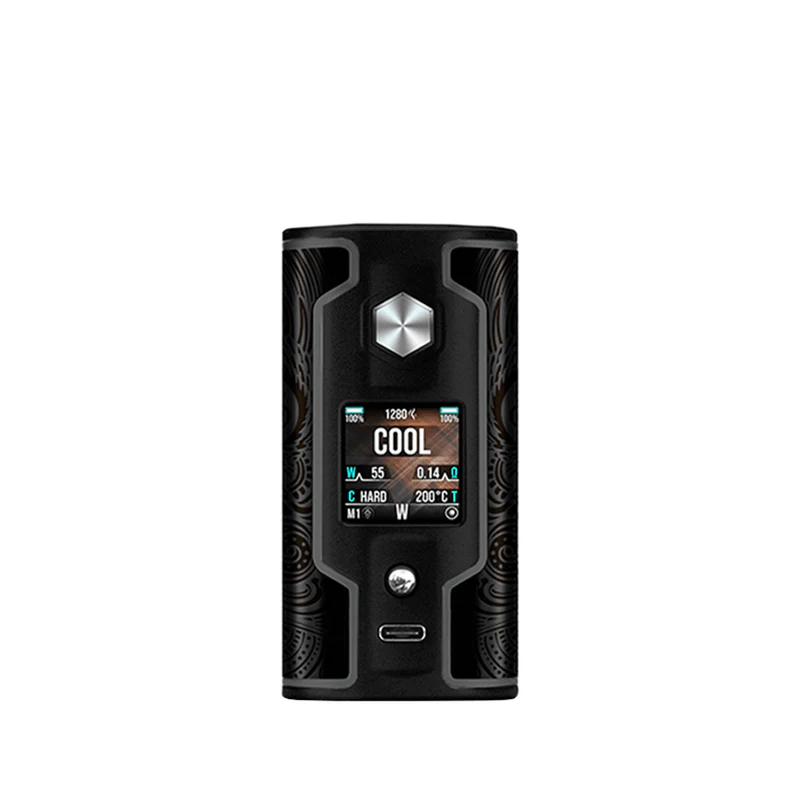

Matte Black / Black Phoenix	Zinc + aluminium

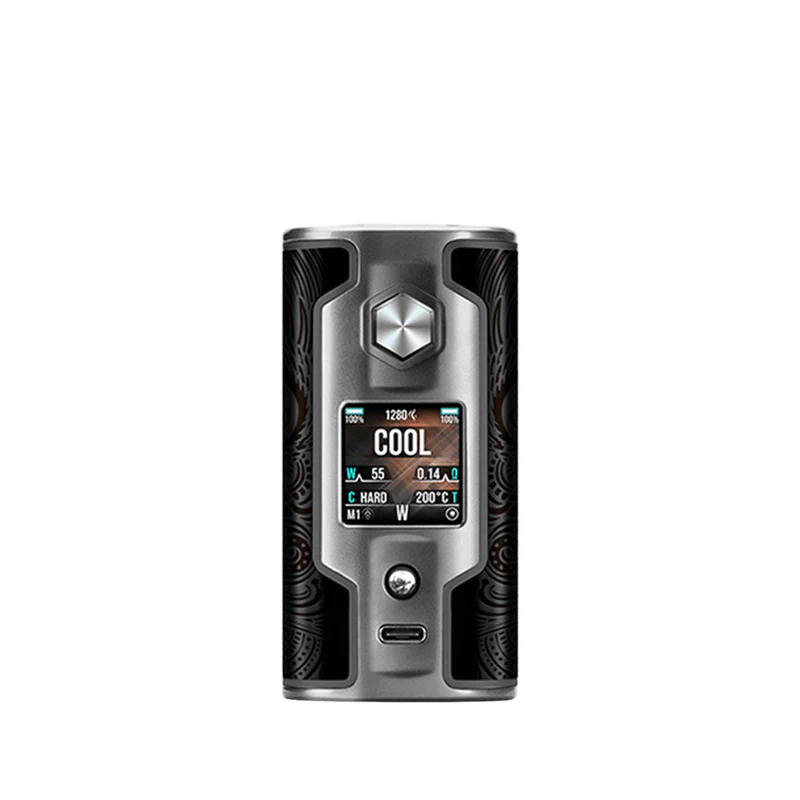

Space Grey / Black Phoenix	Zinc + aluminium

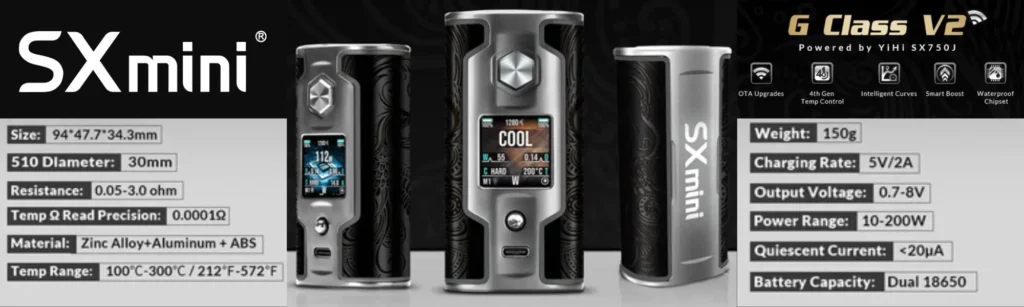

SXmini G Class V2 Features

Feature	Details
Chipset	YiHi SX750 chipset
Power output	Adjustable from 10W to 200W
Battery configuration	Powered by two external 18650 batteries
Temperature Control	Fourth-generation Temperature Control
Resistance precision	Reads resistance to 0.0001Ω
Smart Boost	Intelligent preheating based on the connected coil
Power customisation	Custom power-delivery curves
Memory profiles	Five saved profiles
Connectivity	2.4GHz Wi-Fi
SX-Panel support	Compatible firmware and interface updates
Display	1.3-inch TFT IPS colour screen
Controls	Firing button and five-way joystick
Tank compatibility	Supports tanks up to 30mm
Charging	USB-C charging at up to 5V/2A
Construction	Zinc and aluminium
Chipset protection	Protective coating applied to the chipset

SXmini G Class V2 Specifications

Specification	Details
Device type	Regulated box mod
Chipset	YiHi SX750
Output power	10-200W
Battery compatibility	2 × 18650 batteries
Batteries included	No
Display	1.3-inch TFT IPS colour screen
Temperature range	100-300°C / 212-572°F
Temperature Control materials	SS316L, Ni200, titanium and custom TCR
Resistance range	0.05-3.0Ω
Maximum output voltage	6V
Connectivity	2.4GHz Wi-Fi
Charging connection	USB-C
Maximum charging input	5V/2A
Tank connection	Spring-loaded 510
Maximum tank diameter	30mm
Dimensions	Approximately 94 × 47.7 × 34.3mm
Weight	Approximately 150g
Construction	Zinc and aluminium
Tank included	No

What’s in the Box?

• 1 × SXmini G Class V2 Mod
• 1 × USB cable
• 1 × User manual
• 1 × Warranty card
• 1 × Warning card

Two 18650 batteries, a vape tank, coils and e-liquid are not included.

Who Is the SXmini G Class V2 For?

The SXmini G Class V2 is best suited to experienced vapers who want a premium dual-battery mod with advanced wattage, preheat and Temperature Control options.

It is particularly suitable for:

• Higher-wattage sub-ohm tank users
• RTA and RDA users
• Temperature Control users
• Vapers who switch between multiple atomisers
• Users who want memory profiles and custom power curves
• Vapers who prefer dual-battery capacity over a smaller single-cell device

Vapers who prioritise portability may prefer the SXmini SL Class V2 Box Mod.

Explore more devices from SXmini and YiHi. The SXmini G Class V2 Box Mod combines dual-18650 power, a 200W output ceiling and advanced YiHi chipset controls for users who want greater control over how their atomiser performs.

Frequently Asked Questions

Which batteries does the SXmini G Class V2 use?

The SXmini G Class V2 requires two external 18650 batteries, which are sold separately. Use a matched pair of the same brand, model, age and charge history. It does not support 20700 or 21700 batteries.

What is the maximum wattage of the SXmini G Class V2?

The G Class V2 provides an adjustable output of 10-200W. Always use a wattage that falls within the recommended range of the coil installed in your tank.

Does the SXmini G Class V2 require Wi-Fi?

No. Wi-Fi is only used for compatible firmware and interface customisation through SX-Panel. The mod can be used normally without connecting to Wi-Fi.

What size tank fits the SXmini G Class V2?

The G Class V2 uses a standard 510 connection and supports tanks and atomisers up to 30mm in diameter without overhang.

Does the SXmini G Class V2 include a tank or batteries?

No. The package includes the mod, USB cable, user manual, warranty card and warning card. A compatible tank, coils, two 18650 batteries and e-liquid must be purchased separately.
